Add a Sensor Icon to a Map in Command Station

  1. Last updated
  2. Save as PDF
Adding a Sensor Icon

NOTE: Adding a Sensor Icon to Maps in Command Station is not currently compatible with Maps in the Cloud Web Client.

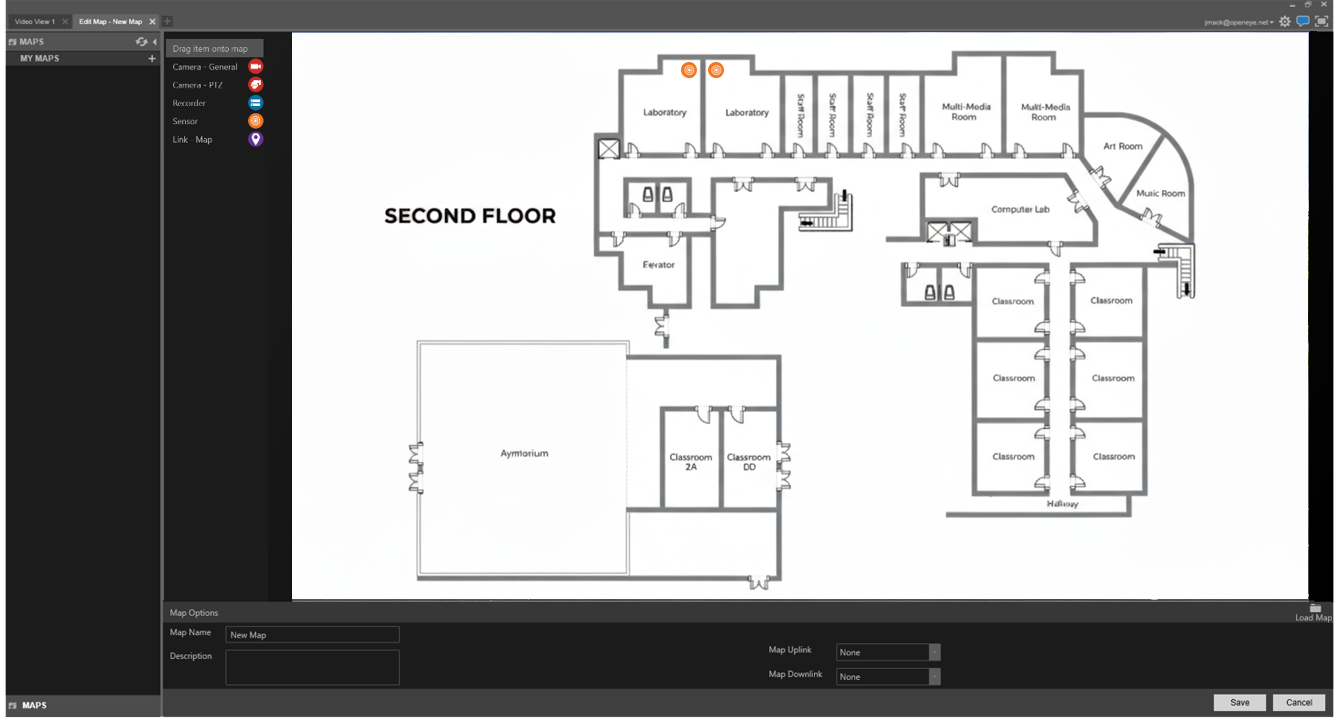

CS Map Screen w sensors.png

  1. Drag and drop Sensor to add a sensor icon to the map.
  2. Select a sensor to associate with a sensor icon and click Add.
  3. Customize the appearance of the icon by changing Marker Type, Color and Rotate.
  4. Hover over a sensor icon to see sensor details.

Drag item onto map icons.png

Select Sensors in Maps.png

Marker Options for Sensors in Maps.png
