OE-CC3214F12 Installation Guide

  1. Last updated
  2. Save as PDF
PRECAUTIONS
  • The camera must not be installed in a location that is exposed to heavy vibration or possible impacts.
  • The camera should be used in compliance with local laws and regulations.
  • Do not install the camera on an unstable mount or surface.
  • Do not disassemble the camera or perform maintenance when power is connected.
  • Before installation, the camera should be stored in a dry and ventilated environment.
  • Use only accessories that comply with the technical specifications of the camera.

Follow the Quick Start Guide for installing an OpenEye cloud camera and adding it to OpenEye Web Services.

Contents

OE-CC3214F12 cameras come with a mounting template, desiccant pack, adapter plate, screws, screw anchor mounts, 2-pin terminal block, torx tool, and waterproofing kit. Identify the following components to make sure everything has been properly included with your new camera. If any of the following items are missing, contact the dealer to arrange a replacement.






Fisheye Camera


Mounting Template








Desiccant Pack


Adapter Plate




x3 Philips 1-3/8" 35mm Screw




Screw Anchor Mounts




x3 Philips M4 Head, M3 x 8mm




2-pin Terminal Block




x4 Philips #6-32, 1"




x4 Philips #8-32, 1"


x1 RJ45 Cable Grommet, , ø 5–7 mm


x1 I/O Cable Grommet, ø 5–7 mm




T10 Torx Tool






RJ45 Extender

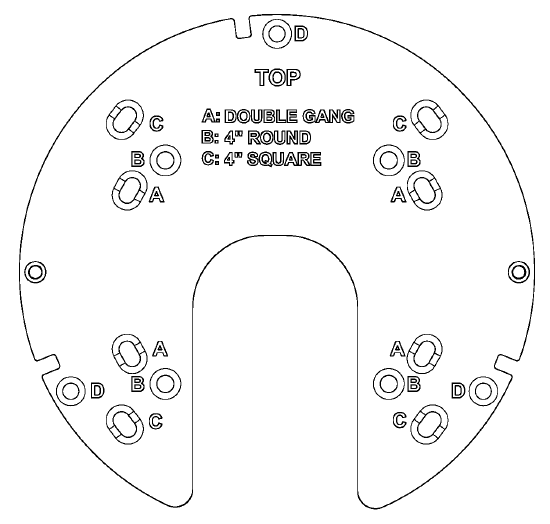

Adapter Plate Compatibility


A Double Gang Electrical Box
B 4" Round Electrical Box
C 4" Square Electrical Box
D

OE-CA32JB-01

OE-CA91AWM-01

OE-CA32WM-01

OE-CA32PC-1



Hardware Installation

1. Attach the positioning sticker to a wall or ceiling, then drill screw holes and cable holes according to the positions marked on the positioning sticker.

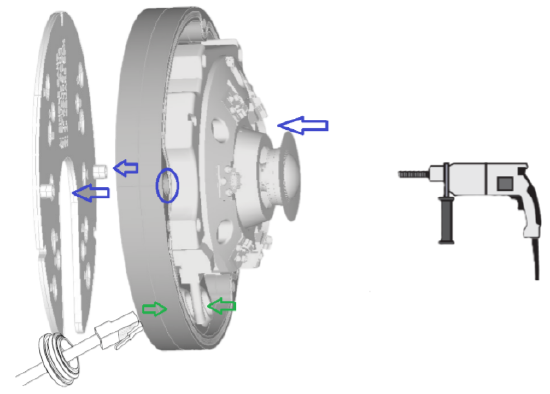

  1. Attach the adapter plate to the mounting surface (D holes) using the provided screws.


3. Open the camera cover.

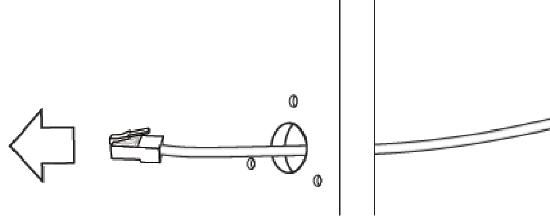

  1. Route the cables through the routing hole.


5. Insert the network cable and grommet into the camera base.

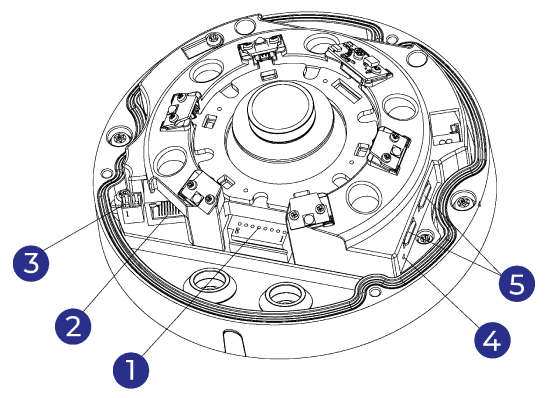

  1. Connect the network cable to position 2 (if you are not using PoE for power, connect the DC12V power at position 3 using the 2-pin terminal block), and secure the base of the camera to the adapter plate by tightening the 3 torx screws (as seen in step 5).


7. Reattach and secure the camera cover to the camera base.
