OE-C9812M8-S Quick Start Guide

Coming Soon!

OE-C9812M8-S Quick Start Guide Hard Copy

Click the link if you need to download the original hardcopy of the OE-C9812M8-S Quick Start Guide included with the boxed contents.

Box Contents

OE-C9812M8-S cameras come with a waterproof cable connector, self-tapping screws and plastic anchors, security torx tool, and mounting template. Identify the following components to make sure everything has been properly included with your new recorder. If any of the following items are missing, contact the dealer to arrange a replacement.

OE-C9812M8-S Multisensor Camera

waterproof cable connector.png

Waterproof Cable Connector

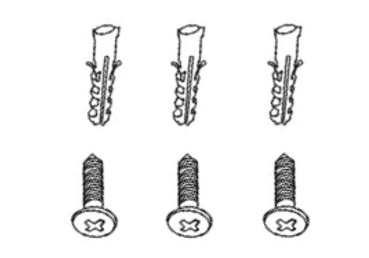

Screws and Anchors.png

Self-Tapping Screws/M4/6.8MM (x3) & Plastic Anchors 4-5MM (x3)

Security Torx Tool

Mounting Template

Connections

Camera Cables

1	RJ-45 Port	-	For network and PoE connections
2	Power (24vDC)*	-	Power Connection
3	Alarm I/O	GND	Ground
		IN	Alarm In
		N	Alarm Out -
		P	Alarm Out +
4	Audio I/O	GND	Ground
		IN	Audio In
		OUT	Audio Out

Default Username and Password

*OpenEye IP cameras ship without a default password.

Username: admin

The admin user password can be set using the following methods:

OpenEye recorders running Apex 2.6 or newer will automatically set a new unique password when added in setup, if a new password has not already been set.

NOTE: You can set your Default Camera Password under the General Settings page within Setup > System Settings > General Settings. For instructions on defining your unique camera password, visit Default Camera Password.

Connect to the camera directly through a Web Browser and follow the onscreen prompts.
Use the Network Camera Manager (NCM) Utility.

NOTE: More on the NCM Software can be found at Network Camera Manager.

NOTE: Refer to your recorder manual or quick start guide for instruction on adding cameras.

Assigning an IP Address

OpenEye IP cameras are set to DHCP by default. If a DHCP server is not detected after 2 minutes, the camera will default to IP address 192.168.51.2. If you are not using a DHCP server, NCM will allow you to batch configure a static IP address. The default IP address for the camera network on your recorder is 192.168.51.1.

Selecting multiple cameras and entering IP address 192.168.51.2 will set an IP address on all selected cameras, starting at 192.168.51.2 and increase per camera.

Open the Network Camera Manager application.
Select applicable camera(s).
Input starting IP address, Subnet Mask, Gateway, DNS.
Apply changes.
Wait 60 seconds before refreshing NCM.

NOTE: See Network Camera Manager for more information.

Connecting to the IP Camera

To access the camera setup menu, you need to open Network Camera Manager (NCM) utility. NCM is pre-installed on all OpenEye Recorders and is also available for download on the OpenEye website for installation on your personal computer or laptop.

Open Network Camera Manager.
Locate your camera on the Network Camera Manager list.
To open the web browser, select the camera and click LOAD.

Product Features

Camera

Maximum Resolution	2688 x 1520
Frame Rate at Maximum Resolution	30FPS @ 2688x1520 \| H.264
Video Streams	Two
Day / Night	Auto/Day/Night
Wide Dynamic Range	True WDR

Environmental and Power

Power Consumption	Max 9.1W
Input Voltage	PoE / DC12V
Operating Environment	-22°F ~ 140°F (-30°C ~ 60°C)
Ingress Protection	IP67
Impact Rating	IK10
