Export and Clip Sharing in the Cloud Video Player

OWS Export allows you to easily extract clips from ether the live timeline or search results.  Those clips can then be shared ether internally or externally from the same workflow.
Export Video
  1. Click Export on the video player.

 OWS Video Player Export Button.png

  1. Select an Export Type: Single Camera, Multi Camera, Snapshot, or Archive.

Export Type Menu.png

Export Single Camera
  1. Select the Date / Time, Duration, Video Quality and Video Resolution. Check to include Audio if available.

Single Camera Video Export Video Resolution.png

NOTE: Longer Duration and higher Video Quality will result in larger video files.

Video Resolution:

Original  Fast option. Does not include date/time and does not dewarp video.
High Quality Takes longer. Max resolution of 9MP and adds date/time to bottom of video.
Medium Quality Takes longer. Max resolution of 2MP and adds date/time to bottom of video.
Low Quality Fast option. Does not include date/time and does not dewarp video.
  1. Click Next.

Cloud Player Single Camera Export to Web Services.png

  1. Select Export to Web Services.
  2. Enter a Title and any Public Notes if needed.
  3. Click Next.

NOTE: Video clips saved under Export Locally in the Downloads folder are MP4 files by default.

  1. Check Share Clip.

NOTE: If Add to Group is checked, select Add to new group (and enter a Group Name) or select Add to existing group.

Cloud Player Single Camera Add to Group.png

  1. Add Users by entering email addresses. If an account doesn't exist, the user will be emailed a guest account invitation.

Cloud Player Single Camera Add User.png

  1. If a User or User Group is associated with the account, click on Lookup users or Lookup user group

Cloud Player Lookup Users.png

  1. Select All to include all Users or User Groups or click + Green Add button.png to add specific users. When Users have been added, click Select.

Cloud Player Single Camera User Added.png

  1. Select additional options to Set Expiration Date, Allow user to download video clip, or Add text to be included with email (optional).
  2. Click Export.
Export Multiple Cameras
  1. Check the cameras to include in the export. Check Select All Cameras in Grid to select all.

Cloud Player Multi Camera Select.png

  1. Click Next.
  2. Select the Date / Time, Duration, Video Quality and Video Resolution. Check to include Audio if available.

Multiple Camera Video Export Video Resolution.png

NOTE: Longer Duration and higher Video Quality will result in larger video files.

Video Resolution:

Original  Fast option. Does not include date/time and does not dewarp video.
High Quality Takes longer. Max resolution of 9MP and adds date/time to bottom of video.
Medium Quality Takes longer. Max resolution of 2MP and adds date/time to bottom of video.
Low Quality Fast option. Does not include date/time and does not dewarp video.
  1. Click Next.

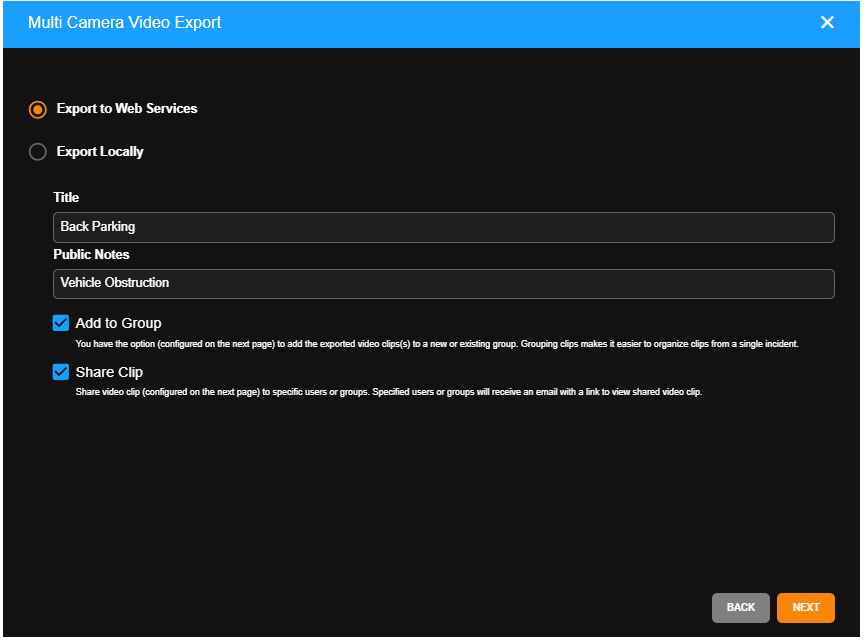

Cloud Player Multi Camera Export to Web Services.png

  1. Select Export to Web Services.
  2. Enter a Title and any Public Notes if needed.
  3. Click Next.

NOTE: Video clips saved under Export Locally in the Downloads folder are MP4 files by default.

  1. Check Share Clip.

NOTE: If Add to Group is checked, select Add to new group (and enter a Group Name) or select Add to existing group.

Cloud Player Multi Camera Add to Group.png

  1. Add Users by entering email addresses. If an account doesn't exist, the user will be emailed a guest account invitation.

Cloud Player Multi Camera Add User.png

  1. If a User or User Group is associated with the account, click on Lookup users or Lookup user group.

Cloud Player Multi Camera Lookup User Group.png

  1. Select All to include all Users or User Groups or click + Green Add button.png to add specific users. When Users have been added, click Select.

Cloud Player Multi Camera User Added.png

  1. Select additional options to Set Expiration Date, Allow user to download video clip, or Add text to be included with email (optional).
  2. Click Export.
Export Snapshot
  1. Enter a Filename.
  2. Click Export

Cloud Player Snapshot Export.png

NOTE: Locally exported images are saved in the Downloads folder as JPEG files.

Export Archive
  1. Check the cameras to include in the export. Check Select All Cameras in Grid to select all.

Cloud Player Archive Export Select Camera.png

  1. Select the Date / Time and Duration.

Cloud Player Archive Export Date and Time.png

  1. Click Next.
  2. Enter the Filename and click Export.

Cloud Player Export Archive Locally.png

NOTE: Locally exported archives are saved in the Downloads folder as compressed files.

NOTE: Download Archive Viewer to view an Archive. The Archive Viewer is saved in the Downloads folder.

Export Status

The Export button will display differently according to the status of the export:

  • Export started:
    • The export icon and text will change to yellow and stay yellow until the export is complete.

Export Video Clip in Progress.png

  • Export complete:
    • The export icon and text will return to white.

OWS Video Player Export Button.png

  • Export failed to complete - Please try again or reach out to support for assistance:
    • The export icon and text will return to white.

OWS Video Player Export Button.png

NOTE: Messages will also appear in the upper left-hand corner of the player when the export is started Export started.png and when it is completed. Export completed!.png
