Important Safeguards
View Important Safeguards before installing the camera.
Warranty
View the Product Warranty for the camera.

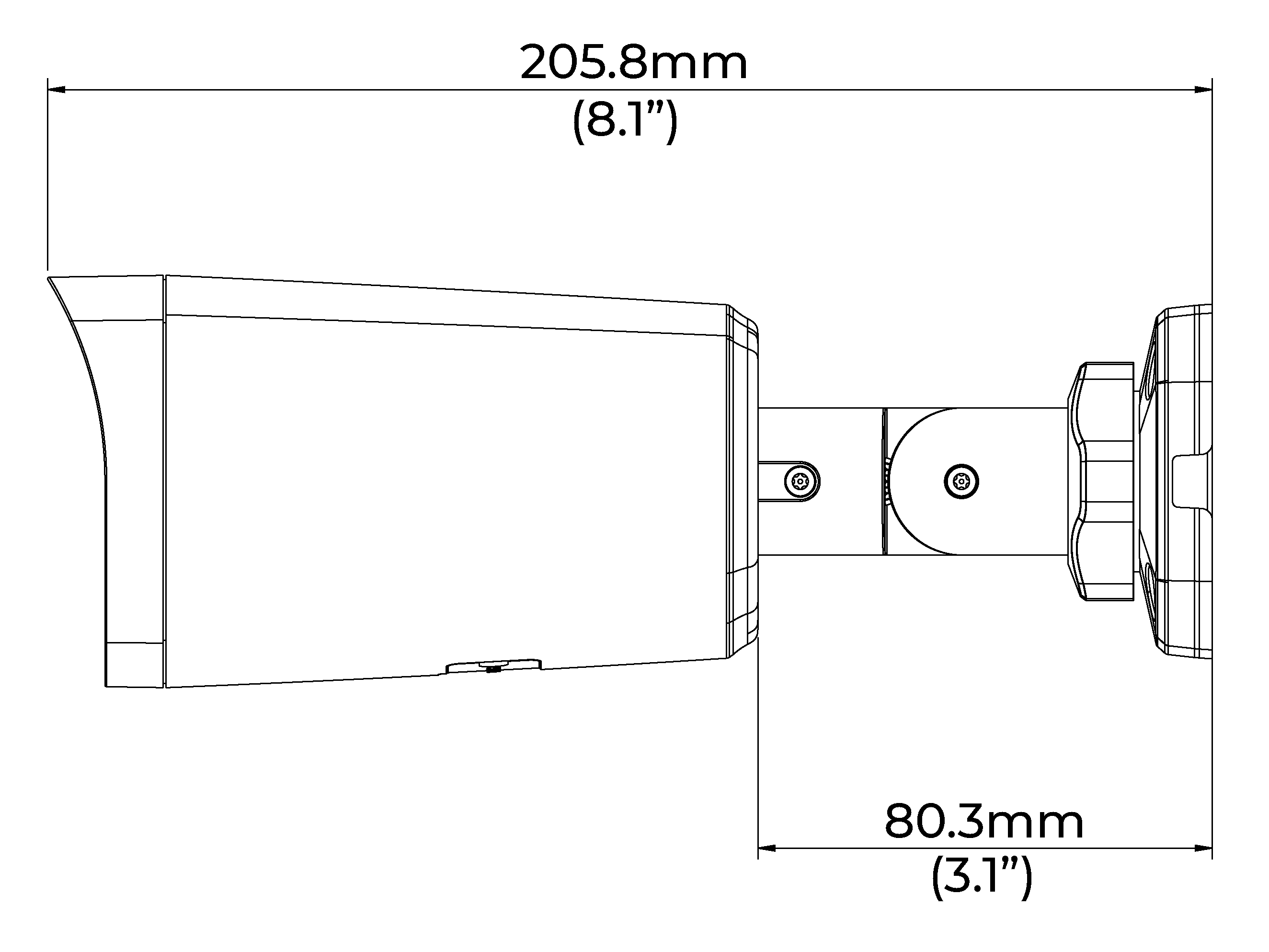

Camera Dimensions
Connections
| 1 | RJ45 | For connector and PoE connections |
| 2 | Power (12vDC)* | Power connection |
| *12vDC power input port should be plugged when not in use. | ||
Power Connection
For an adequate power connection, use a 12vDC adaptor. Alternatively, you can power the camera by PoE if a Power Sourcing Equipment (PSE) switch is available. Ensure that the camera’s power cable is correctly and firmly connected.
NOTE: OpenEye recommends against using more than one power source at a time. Do not use a PoE power source when providing the camera with 12vDC power.
If using Power over Ethernet (PoE), make sure Power Sourcing Equipment (PSE) is in use in the network.
Resetting the Camera
| Reset Button |
To restore the camera to factory defaults:
|
|
| MicroSD Card Slot |
Supports up to 512GB microSD card for Edge storage. Do not add or remove the microSD card when the camera is powered on. |
|
Features
- 4MP | Up to 30FPS
- 2.8~12mm VF, AF, Zoom Lens
- Compact
- Cost-Effective
- Rugged (IP67 Rating)
- True WDR
- Built-in Microphone
- NDAA Compliant
Box Contents
OpenEye C2212B4 cameras come with self-tapping screws and plastic anchors, mounting template, and a waterproof cable connector. Identify the following components to make sure everything has been properly included with your new recorder. If any of the following items are missing, contact the dealer to arrange a replacement.
|
OE-C2212B4 Bullet Camera |
Self-Tapping Screws and Plastic Anchors |
|
Mounting Template |
Waterproof Cable Connector |
