OE-C1011D4-S Hardware Manual - Features and Contents

  1. Last updated
  2. Save as PDF
Important Safeguards

View Important Safeguards before installing the camera.

Warranty

View the Product Warranty for the camera.

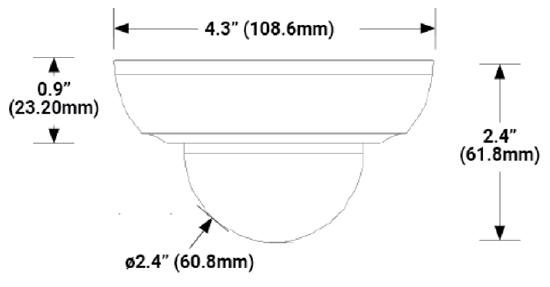

Camera Dimensions

C1011D4-S Line Measurements.png

Connections

C1011D4-S Connections.png

1 RJ45 - For network and PoE connections
2 Power (12vDC) 1 12vDC + Power Connection
2 GND -
3 Reset Button -

To restore the camera to factory defaults:

  1. Disconnect power for 30 seconds.
  2. Reconnect power and wait 30 seconds.
  3. Press and hold the reset button for 20 seconds.
4 Alarm & Audio I/O 1 Alarm Out + Audio connection
2 GND Ground connection
3 Audio In + Audio connection
4 GND Ground connection
5 Alarm Input Alarm connection
6 GND Ground connection
7 Alarm Output + Alarm connection
8 Alarm Output - Alarm connection
5

Built-in microphone


6 microSD Card Slot

Supports up to 512GB microSD card for Edge storage.

Do not add or remove the microSD card when the camera is powered on.
Power Connection

For an adequate power connection, use a 12vDC adaptor. Alternatively, you can power the camera by PoE if a Power Sourcing Equipment (PSE) switch is available. Ensure that the camera’s power cable is correctly and firmly connected.

NOTE: OpenEye recommends against using more than one power source at a time. Do not use a PoE power source when providing the camera with 12vDC power.

If using Power over Ethernet (PoE), make sure Power Sourcing Equipment (PSE) is in use in the network.

Features
  • Person, Vehicle, Line Crossing Detection Analytics
  • 2.8mm Fixed Lens
  • Corridor Mode
  • Built-in microphone
  • Adaptive IR
  • Discreet Size
  • True WDR
  • Internal Cable Connection
  • NDAA Compliant
  • Accessory Compatibility
  • Smart Compression
  • Optional Paintable Dome Cover (Free Upon Request)
Box Contents

OpenEye C1011D4-S cameras come with self-tapping screws and plastic anchors, mounting template, and a torx tool. Identify the following components to make sure everything has been properly included with your new recorder. If any of the following items are missing, contact the dealer to arrange a replacement.

C1011D4 Dome Camera Line Drawing.png

OE-C1011D4 -S Dome Camera

Screws and Anchors.png

Self-Tapping Screws and Plastic Anchors x3

C1012D2-S mounting template.png

Mounting Template





torx tool.png



Torx Tool
