Integrations

Integrations

These settings are found within the recorder setup menu. From the OWS Cloud Portal, click Connect next to the desired recorder under the Web Connect tab. Once in Live or Search, click Setup or gear icon in the upper right-hand corner to access.

  • Add new Integration Device - Click to add device.
  • Enable Auto-Discovery - Check to automatically detect connected devices (only supported for DMP at this time).
  • Sort By - Use dropdown to Sort By Firmware Version, IP Address, Manufacturer, Model, Name, or State categories.

Integrations tab.png

Sensors

NOTE: This tab is not visible unless an integration device has been added.

Server Setup Intrusion Sensors.png

Enable – Enable or disable a sensor.

Number – Number value from the sensor input record.

Address – Sensor number associated with the recorder.

Sensor Name – Name of the sensor associated with the recorder.

Origin – Origin of the sensor being used by the recorder (typically internal to the recorder).

Current State – Current state of the sensor (open or closed).

Default State – Normally open or normally closed sensor.

Debounce – Debounce time in milliseconds is the duration to ignore repeated contacts.

Associated Macros – Shows any macros associated with a specific sensor.

Area – Associate a sensor with an intrusion area.

Associated Camera – Allows the association of a specific camera to a sensor.

Image Offset – The delay between the start of a sensor event and the time an event is captured.

Invert State – Inverts the state of the sensor.

Areas

NOTE: This tab is not visible unless an integration device has been added.

Use this tab to view area names, origin, current state, and associated macros.

Server Setup Intrusion Areas.png

Settings

Check Enable Hourly Sync and enter a DMP Listen Port for DMP Panels.

Setup Intrusion Settings.png

Integration Devices

Use this tab to add new, view or edit integration devices.

Server Setup Intrusion Intrusion Panels.png

NOTE: Check the box labeled Enable Auto-Discovery (Only supported for DMP at this time) to have the system attempt to automatically add a connected integration device. This setting must be enabled each time the recorder is powered on. Modifying the global DMP Listen Port applies to all panels.

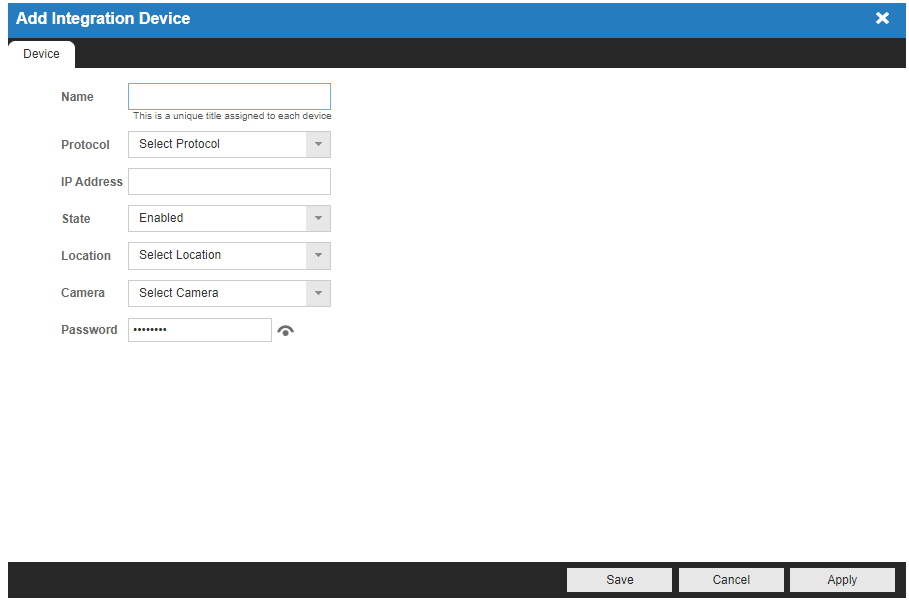

  1. Click Add Integration Device.
  2. Enter the name of the device.
  3. Select the protocol to use in the Protocol dropdown menu.
  4. Enter the IP address of the integration device.
  5. Select the state of the integration device from the State dropdown menu.
  6. Select the integration device location in the Location dropdown menu.
  7. Select the camera to associate with the integration device in the Camera dropdown menu.
  8. Click Save.

Add Integration Device popup.png

Attached Devices

Use this tab to view attached devices such as doors and keypads.

Server Setup Intrusion Attached Devices.png
