Rack Mounting an MD Model Recorder

The rack mounts for the OE-MD may look different than standard rack mounts, but they effectively work the same.

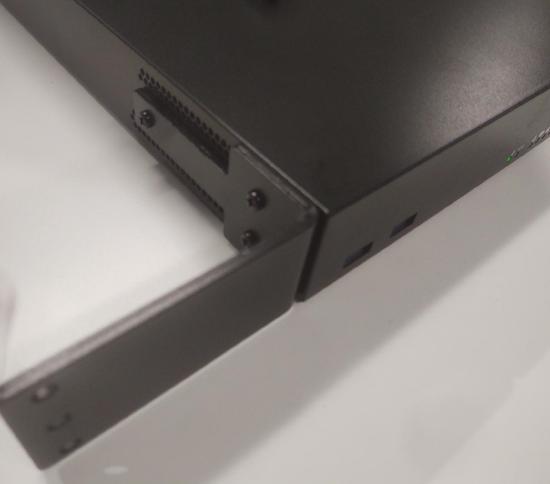

To mount rack mounts on the OE-MD, make sure the thinner part of the rack mount connects to the side of the recorder. This allows it to fit between the ventilation holes on the sides of the recorder.

Then line up the holes on the mount with the screw holes on the recorder, and use the included screws to mount the rack mount to the recorder. Once both brackets are mounted, they should be wide enough to allow the recorder to mount into a server rack.
