OE-CC3020D5 Hardware Manual - Features and Contents

Important Safeguards

View Important Safeguards before installing the camera.

Warranty

View the Product Warranty for the camera.

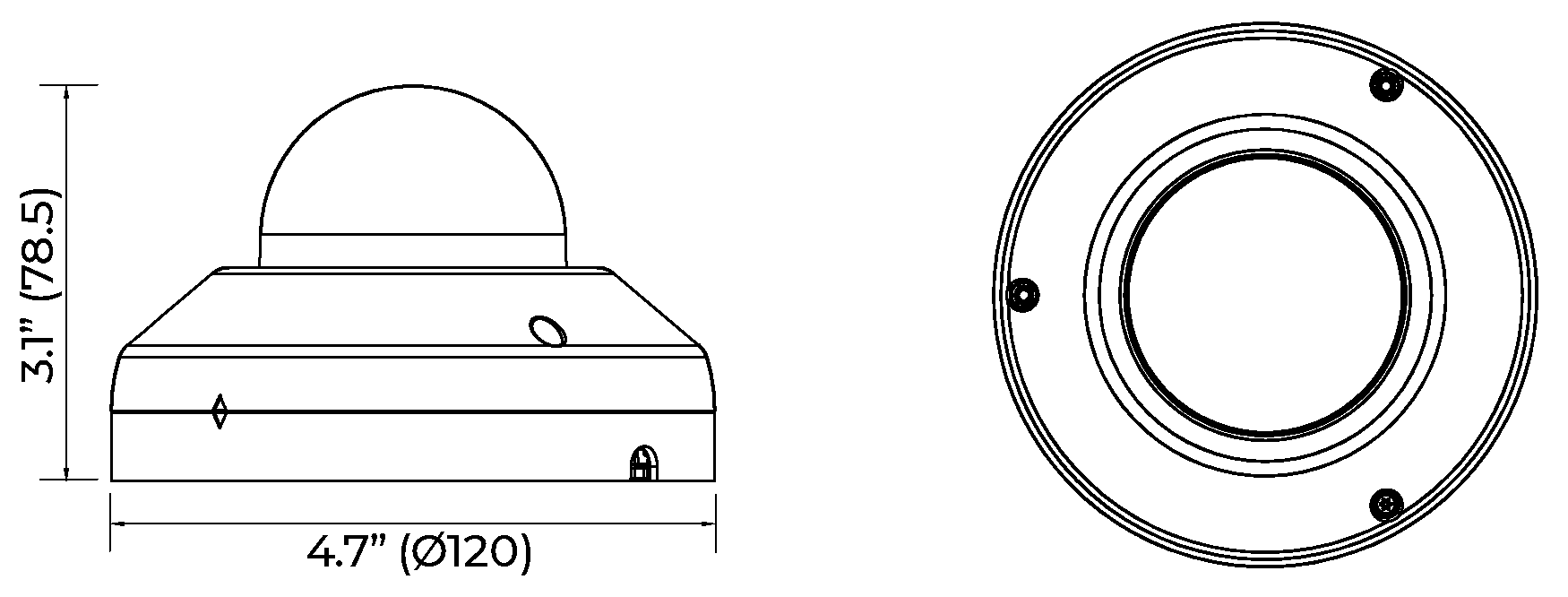

Camera Dimensions

Connections

No.	Name	Description
1	RJ45	For network and PoE connections
2	Power (12VDC)	Power Connection: 1. 12VDC+ 2. GND-
3	Reset Button	To restore the camera factory defaults
4	microSD Card Slot	Insert microSD card to store videos and snapshots

Reset Button

The reset button performs one of three actions depending on how long it is held:

Reboot: Hold reset button for 5 seconds to reboot.

Status LEDs will be solid red during the reboot.

Partial Reset: This option will retain Web Services account information and Network Settings while reverting all other settings to factory defaults.

Hold reset button for 20 seconds to complete a Partial Reset.
Status LEDs rapidly flash red and green when the camera is being reset to factory defaults.

Full Factory Reset: This option will reset the camera to factory defaults and format the internal storage.

Hold reset button for 30 seconds to reset camera to factory defaults.
Status LEDs rapidly flash red when the camera is being reset to factory defaults.

Power Connection

PoE+ is the recommended power source for this device. A 12vDC power source can be used if necessary.

NOTE: Only one power source should be used at any time.

Installation

To prepare the camera for wall or ceiling installation with accessories, see instructions on the Quick Installation Guide.

Features

5MP 2.8mm Fixed
Onboard Recording
Advanced Analytic Capabilities
Automated Updates
High Dynamic Range (HDR)
Adaptive IR | Up to 98'
IK10 Impact Rating
IP66 Ingress Rating
NDAA Compliant

Box Contents

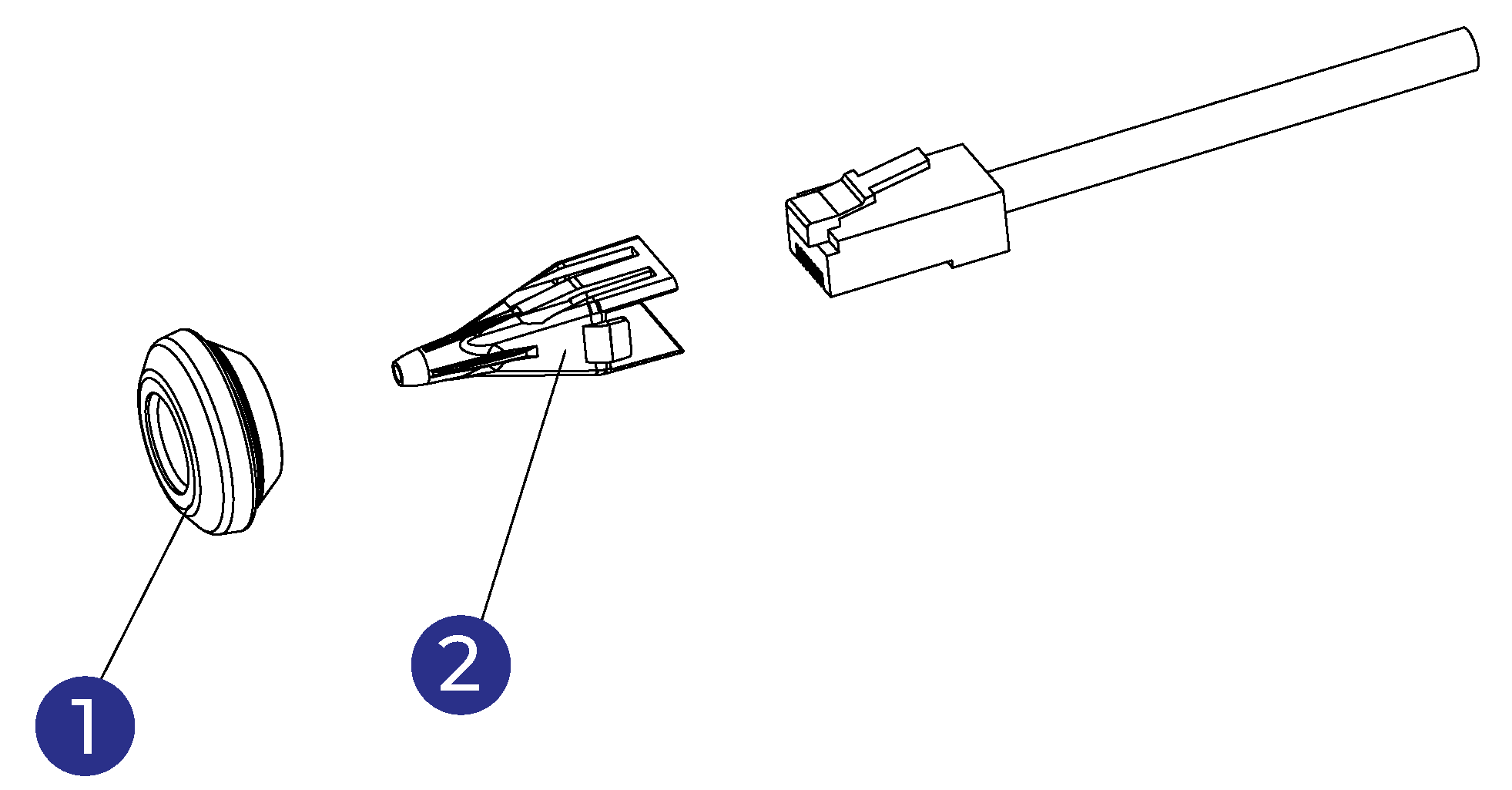

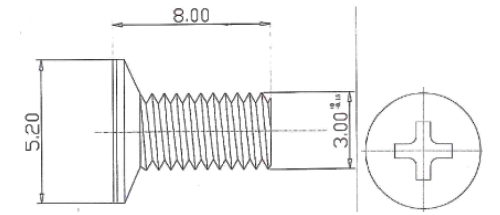

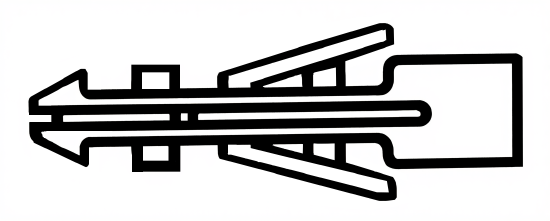

OE-CC3020D5 cameras come with a mounting template, desiccant pack, adapter plate, screws, screw anchor mounts, torx tool, grommets, and cable extender. Identify the following components to make sure everything has been properly included with your new camera. If any of the following items are missing, contact the dealer to arrange a replacement.
